Wall Mounted Energy Meter
DTSY2367、DSSY2367
DTSY2367、DSSY2367
DTSY2367、DSSY2367
Overview

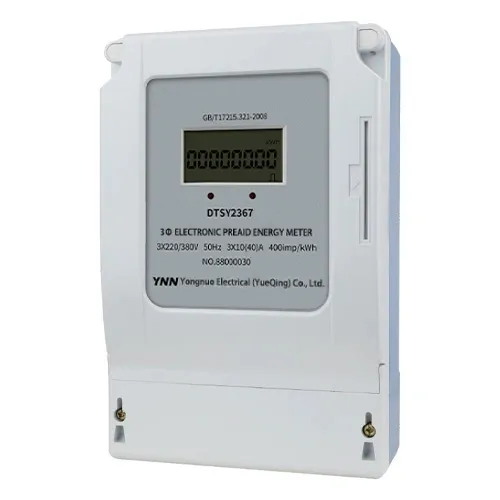

DTSY2367 type, DSSY2367 type three-phase electronic prepaid energy meter (hereinafter referred to as meter), in accordance with GB/T17215 and GB/T18460 standards, uses advanced single-chip microcomputer processing system for data, processing and storage. Its purpose is to measure the three-phase active energy with a rated frequency of 50Hz.
Technical
Model
Accuracy
class
Rated
voltage(V)
Rated
current(V)
Access
method
Instrument constant(imp/kWh)
DTSY/DSSY
1 or 2
3x220/380, 3x57.7/100
1.5(6)
Mutual inductance type
1600
3x100
10(40)
Direct style
400
3x380
15(60),20(80)
Direct style
400
♦ Computer management is applied, purchase electricity before using it;
♦ It can limit the maximum power consumption within the rated current (limited by the power department);
♦ One meter one card, special card for special use, no power loss if the card is lost, and the card can be replaced and used again;
♦ The electricity card can transmit data in both directions;
♦ It can automatically cut off power and alert users to purchase electricity;
♦ When the electricity is zero, it will cut off power;
♦ It also has certain anti-electricity theft software design.
