Wall Mounted Energy Meter
DTS2367-L、DSS2367-L
DTS2367-L、DSS2367-L
Overview

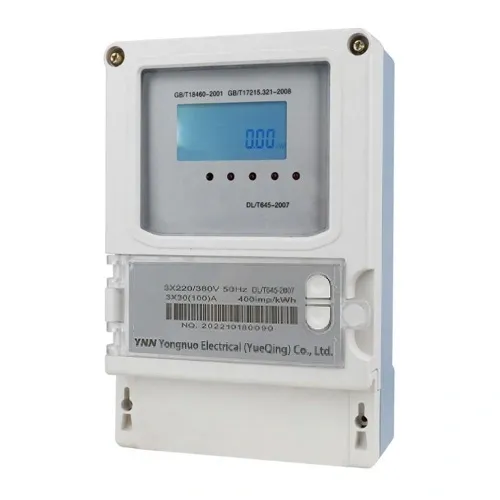

DTS2367-L type, DSS2367-L type three-phase electronic energy meter is a new generation of miniature intelligent energy launched by our company with years of experience in meter design. This series of instruments adopts high-definition LCD display, which can set parameters such as clock and tariff period, has the function of electric energy pulse output; it can communicate with the host through RS485 communication interface to exchange actual data, and realize remote meter reading, control of switch function, remote prepaid recharge function, which greatly facilitates the automation management of electricity. This series of instruments has the advantages of small size, high accuracy, reliability and convenient installation. The performance index meets the technical requirements of GB/T17215 and GB/T17883
Technical
Accuracy
class
Active: Class
1.0
Active: Class
0.5
Rated
voltage
3
x 220/380V
Current
specification
1.5(6)A、5(20)A、10(40)A、15(60)、20(80)A、30(100)A
Operating voltage
Normal working
voltage range: 0.9-1.lUN; Limit working voltage range: 0.7-1.2UN
Reference
frequency
50Hz or 60Hz
Starting current
Direct
access
0.004lb
Access through CT
0.002lb
Voltage line
≤5VA/Phase
Current line
< 4VA/Phase
Pulse output
Pulse width:
80±20ms, opto-coupler isolated output, collector open-drain output
Communication
interface
RS485, MOD BUS-EVE N (Other agreements can be customized)
Clock
error
≤0.5s/d
Temperature range
Normal working
temperature: -10℃- 45℃; Limit working temperature: -20℃〜55℃
Relative
≤95% without condensation
MCBF
≥50000
Overall
dimensions(LxWxH)
132x159x69(mm)
Product Specifications
| Product model | Accuracy class | Rated voltage(V) | Current specifications | Pulse constant(imp/kWh) |
| DTS (Three-phase four-wire) | 1.0 | 3 x 220V/380V | 3x 1.5(6)A | 6400 |
| 3x5.7V/100V | 3x5(20)A | 400 | ||
| 3x 10(40)A | 400 | |||
| 3x 15(60)A | 400 | |||
| 3x20(80) A | 400 | |||
| 3x30(100)A | 400 | |||
| DSS(Three-phase four-wire) | 1.0 | 3x380V | 3x1.5(6)A | 6400 |
| 3x100V | 3x5(20)A | 400 | ||
| 3x10(40)A | 400 | |||
| 3x 15(60)A | 400 | |||
| 3x20(80) A | 400 | |||
| 3x30(100)A | 400 |
Functional characteristics
♦ Implement monitoring of single-phase current, voltage, power, frequency, power factor, forward and reverse active energy, reactive energy;
♦ Long life
♦ Low power consumption of the entire meter;
♦ Strong anti-tampering capability;
♦ Simple installation, not affected by the installation position;
♦ Good low- characteristics, metering accuracy does not exceed the error within the range of -40℃~ 75℃；
♦ Good light load characteristics, the instrument still good accuracy at low load.
