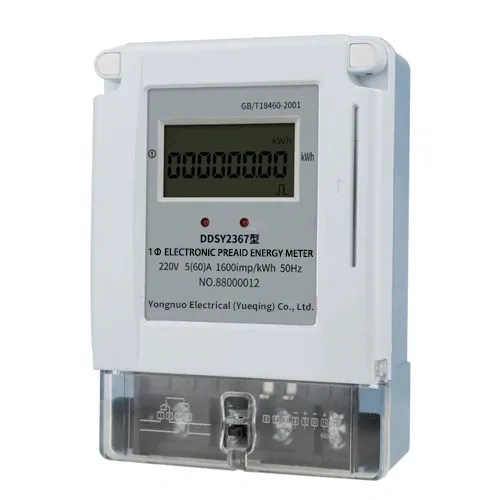

Wall Mounted Energy Meter
DDSY2367
DDSY2367
DDSY2367
Overview
DDSY2367 type single-phase electronic prepaid energy meter (hereinafter referred to as the energy meter) uses microelectronics technology measure electricity, and the energy meter conforms to the GB/T17125.321-2008 and GB/T1846.3-2001 standards. The energy meter adopts a fully shielded and fully sealed structure, and uses an advanced single-chip microcomputer processing system IC card for data collection, processing and storage. It has good anti-electromagnetic interference, low self-consumption energy saving, high precision, anti-electric theft, high overload, long life, anti-destruction, anti-illegal card copying, and convenient transmission.
Technical
Product model
Accuracy
class
Calibration
current
Display
mode
Interface
method
DDSY
1, 2
20(80)A
LED LCD
Pulse
5(20)A
10(40)A
♦ Computer management is applied, purchase electricity before using it;
♦ It can limit the maximum power consumption within the rated current (limited by the power department);
♦ One meter one card, special card for special use, no power loss if the card is lost, and the card can be replaced and used again;
♦ The electricity card can transmit data in both directions;
♦ It can automatically cut off power and alert users to purchase electricity;
♦ When the electricity is zero, it will cut off power;
♦ It also has certain anti-electricity theft software design.
