Overview

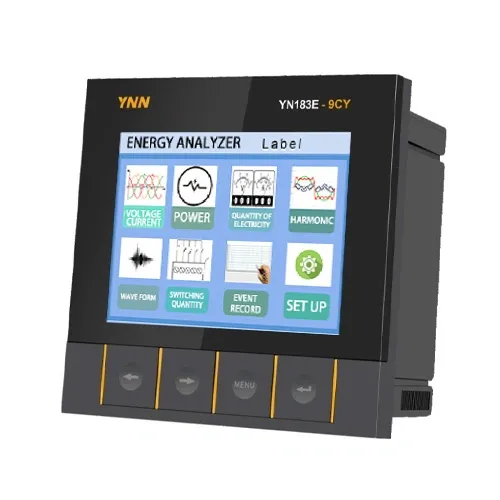

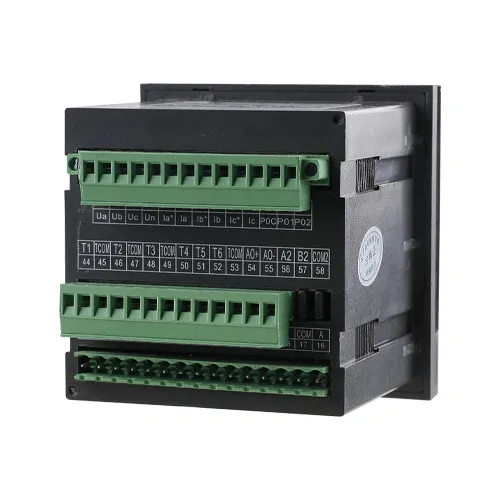

YN183E-9CY type power quality analyzer is a multi-functional power instrument with programmable measurement, display, digital communication and pulse output functions, which can complete the measurement of electric quantity. Energy metering, data display, collection and transmission, and can accurately measure the commonly used electric quantity in the three-phase power grid system: three-phase voltage, current, active power, reactive power, apparent power, power factor, grid frequency, active electric energy, electric energy, and has communication interface function. The standard RS485 MODBUS-RTU communication protocol is used to achieve LCD field display and remote RS45 digital communication.
Technical
Performance
Parameter
Network
Three-phase
three-wire, three-phase four-wire
Rated
value
AC25-500V
Voltage
Overload
Continuous:
1.2 times; 2 times rated value/1s
Power
consumption
＜0.4VA（Perphase）
Impedance
<2mkΩ
Accuracy
RMS measurement, accuracy class 0.5
Current
Rated
value
AC25mA~5A
Overload
Continuous:
1.2 times; instantaneous: lOtimes/ls
Power consumption
<0.4VA（Perphase）
Impedance
<2mΩ
Accuracy
RMS measurement, accuracy class 0.5
Frequency
45〜65Hz
Power
Apparent power, active accuracy class 1.0, reactive accuracy class
2.0
Electric energy
Four-quadrant measurement, active accuracy class 1.0, reactive
accuracy class 2.0
Power
Working
range
AC/DC85-270V
Power consumption
≤5 VA
Output
Digital
communication
RS-485、MODBUS-RTUprotocol、5000imp pulse output
Operating
temperature
-10℃~55℃
Environment
Storage
environment
-20℃-75℃
Safe
Withstand
voltage
Input/power supply > 2kV, input/output
> 2kV, power supply/output > 1kV
Insulation
Input, output, power to chassis > 50MΩ
Electric energy measurement range
The measurement range of active and reactive electric energy is
0~99999999kWh.If the electric energy exceeds this value, it will start to
count from 0
Expand functionality
Analog
output
Optional
1 AO
Switching input
Optional
1-4 DI
Alarm output
Optional
1-2 DO
Pulse output
Time period function, high, peak, flat, valley recording function
Multi-tariff function
Measurement
function
Harmonic
2-31 harmonics
Overall
Product model
YN183E-9CY
Installation dimension of countertop (X x
Y)mm
96x96
Hole sizes(N x M)mm
91 x91
Functional characteristics
♦ Measurement: three-phase voltage, line voltage, current, total active power, total reactive power, total power factor, total apparent power, electrical energy, reactive electrical energy;
♦ Display: LED digital tube display, high visibility;
♦ Communication: 1 RS485 communication, MODBUS-RT protocol;
♦ Output: 1 pulse output of electrical energy (pulse constant 5000 imp/kwh);
♦ Optional: optional harmonic content from 2 31 times, voltage and current unbalance, 2DI 2DO 1 AO or 4DI 2DO, multi-tiff function.
