Din Rail-type Energy Meter
YN40
Overview

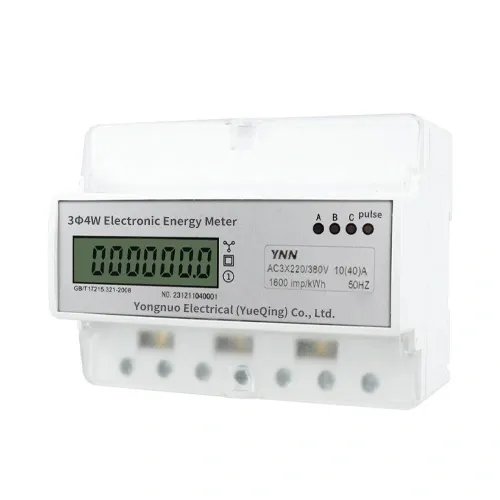

YN40 type Three-Phase Four-Wire Active Electronic Energy Meter is a new type of three-phase electronic energy developed by our company using microelectric technology to measure electric energy, using imported special large-scale integrated circuits, applying digital sampling processing technology and SMT process and other advanced. This energy meter fully meets the relevant technical requirements of GB/T17215.321 -2008 national standard and IEC605J-21 international standard for 1-level three-phase active energy meters; it has the characteristics of good reliability, small size, lightweight, beautiful, advanced technology, etc.; and it has good anti-electromagnetic interference, low self-consumption energy saving, high precision, high overload, high stability,-electricity theft, long life; this meter is suitable for measuring the active electric energy of three-phase AC with rated frequency of 50Hz or 6Hz. It is suitable for fixed installation indoors, suitable for ambient temperature not exceeding -25~+55℃, relative humidity not exceeding 95%, and the does not contain corrosive gases and avoid dust, mold, salt spray, dew, insects and other effects.
Technical
Three-phase four-wire active electronic energy meter specifications
Name
Accuracy
Rated voltage
Rated current
Overall
dimensions
Three-Phase Four-Wire Active
Electronic Energy Meter
Class 1
220V/380V 57.5/100V
1.5(6)A, 5(20)A, 5(30)A, 10 (50)A, 10(60)A, 15(90)A, 20(100)A,
5(65)A, 5 (100)A
126x97x76(mm)
Basic error limits of the electric energy meter with balanced load
Current
value
Power
factor (COSΦ)
Percent
error limit(%)
Direct access
Accessed through mutual induction
Class 1
Class 2
0.05lb
0.02lb
1.0
±1.5
±2.5
0.11b
0.05lb
0.5L
±1.5
±2.5
0.8C
±1.5
—
0.1lb~1Max
0.05lb~1Max
1.0
±1.0
±2.0
0.2lb~1Max
0.1lb~1Max
0.5L
±1.0
±2.0
0.8C
±1.0
Basic error limit of the electric energy meter with single-phase load
0.1lb~1Max
0.1lb~1Max
1.0
±2.0
±3.0
0.1lb~1Max
0.1lb~1Max
0.5L
±2.0
±3.0
Under the conditions of rated voltage, rated frequency and COSΦ,when the load current of the electric energy meter is the value specified in the following table the electric energy meter starts and connects to measure the electric energy
Instrument type
Accuracy class 1
Accuracy class 2
Direct access
0.004lb
0.005lb
Accessed through
mutual induction
0.002lb
0.003lb
Functional characteristics
♦ Real-time monitoring of active energy;
♦ 5+1 digit wide temperature LCD display;

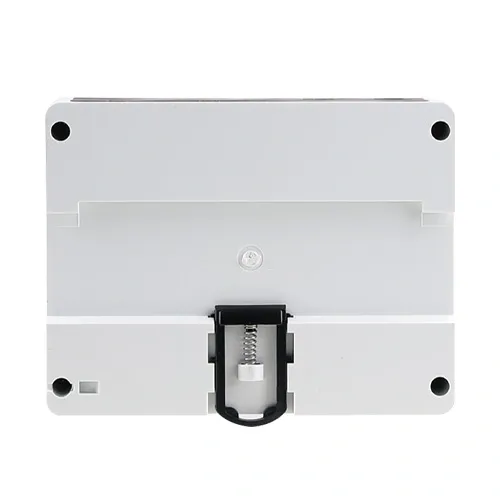

♦ 35mm standard track installation method, work efficiency;
♦ Data automatically saved after power failure, no loss of records;
♦ Application fields: industrial manufacturing, commercial buildings, complete factory, substation, hospital public facilities and other fields;
♦ Customization: can provide enterprises with LOGO, appearance, function and other customized services
