Din Rail-type Energy Meter

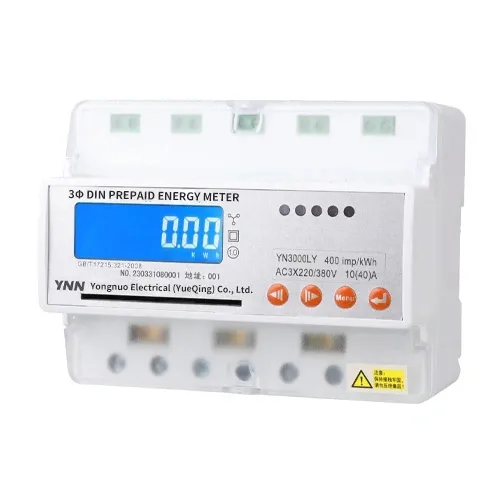

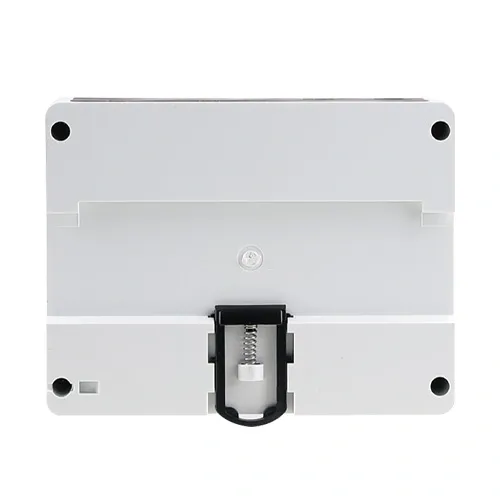

YN3000LY
Overview
The YN3000LY Three-Phase Din Rail-type Prepaid Energy Meter(Full Function 7P) is mainly used in the field of electric energy management for three-phase four-wire networks with the frequencies within the range of 45~65Hz. It can measure the electric energy information in the power grid and exchange data with the upper computer through encrypted IC cards or 485 communication. With a high-power relay built in, the instrument can perform local tripping and closing operations, thereby implementing prepayment function; users can set the internal parameters of the electric meter according to the actual situation on site; featuring convenient use, easy operation, and high accuracy, the instrument is widely used in various residential areas, smart buildings, market malls, collective dormitories, and schools.
Technical
Electric energy accuracy class
Class 1.0
Electric energy measurement range
0-999999.9KWh
Rated voltage
AC110V、AC220V
Current specification
1.5(6)A、5(20)A、10(40)A、20(80)A
Operating voltage
Normal： 0.9-1.1 Un Limit： 0.7〜1.2Un
Reference frequency
45〜65Hz
Starting current
0.004Ib
Power consumption
≤5 VA
Pulse output
Pulse width: 80±20ms, opto-coupler isolated output
Digital communication
RS485 interface, Modbus-RTU protocol, baud rate 9600bps, no check
Temperature range
-10℃~+55℃
Relative humidity
≤95% without
condensation
Overall dimensions(LxWxH)
126x97x76(mm)
Product Specifications
Accuracy
class
1.0
1.0
1.0
1.0
Rated voltage
AC110V AC220V
AC110V AC220V
AC110V AC220V
AC110V AC220V
Current specification
1.5(6)A(External current transformer type)
5(20)A
10(40)A
20(80)A
Pulse constant
6400imp/kwh
1600imp/kwh
1600imp/kwh
1600imp/kwh
Functional characteristics
♦ Measurement: U, I, P, Q, S, PF, F, etc
♦ Electric energy measurement: Three-phase electric energy measurement
♦ Payment control: IC card or remote payment control, payment before electricity utilization, with a relay built in for local opening and closing; the primary current is above 100A; when it is connected to CT, an external circuit breaker or contactor is required
♦ Overload protection: Real-time detection of power value; if it exceeds the threshold value, the product will automatically trip, and after the fault is eliminated and the vending card is inserted, the power supply will be restored
