Din Rail-type Energy Meter

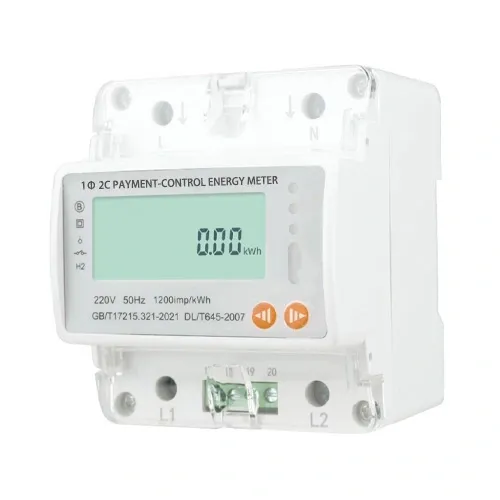

DDZYU2367
Overview
The DDZYU2367 Single-phase Double-circuit Tariff Control Energy Meter is specially developed for power consumption management of student dormitories, and adopts standard 4P module and LCD. This product not only has the electric energy measurement and electrical parameter monitoring functions of traditional electric meters, but also has safe electricity use management functions for student dormitories such as timed ON/OFF, overload identification, malignant load identification, and time-share current limiting.
Technical
Accuracy class
Class
1
Reference voltage
220V
±20%
Frequency
50Hz
Current specification
10(60)A
Instrument
constant
1600imp/kwh
Communication Interface
RS485
Apparent/active
power consumption of voltage line
≤1.1VA/0.81W
Apparent power consumption of
current line
≤0.24VA
Wiring capability
10mm2
Number of metering circuits
1 Circuit
Clock error
≤0.5s/d(25℃)
Starting current
≤0.4%lb
Security
performance
Withstand
voltage 4kV, insulation resistance 5MΩ
Operating temperature range
-25℃~+55℃
Storage
temperature
-40℃~+70℃
Relative humidity
<75%
Display
LCD
Overall dimensions(LxWxH)
76 x 89 x 74(mm)
Functional characteristics
♦ Electric energy measurement, with a measurement accuracy of class 1.0.
♦ Remote pre-payment, automatic switch-off in case of insufficient balance, automatic power restoration after recharging.
♦ Built-in system clock, realizing timed power ON/OFF function.
♦ Overload identification, time-share current limiting, allowing setting different overload thresholds for different time periods.
♦ Malignant load identification, effectively identifying illegal high-power electrical appliances and pure resistive loads.
♦ Have the anti-blackout socket identification function, thus effectively controlling the use of prohibited electrical appliances.
♦ Have the function of detecting the operating temperature of electric meter, so that the power supply will be cut off automatically when the temperature exceeds the set value.
♦ Have automatic power restoration function, so that the power supply can be restored after overload power outage or power outage due to use of malignant load. The time of power restoration and the number of tripping times can be set.
♦ Real-time monitoring of parameters such as voltage, current, power, and power factor.
♦ Independent CPU, independent metering unit, independent storage unit, local parameter configuration, which can run completely independently.
