Din Rail-type Energy Meter

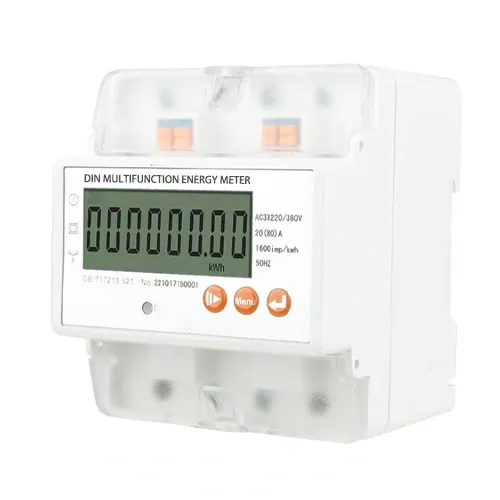

YN340XE
Overview
YN340XE type Multifunction Energy Meter(Din Rail-type) is a new generation of miniature track-mounted energy meter launched by our company with of experience in meter design. This meter uses LCD display and has the function of energy pulse output; it can be connected to the host computer through the RS48 communication interface to achieve data exchange, which greatly facilitates the automated management of electricity use. This meter has the advantages of small size, high accuracy, good reliability, and installation, and its performance indicators meet the technical requirements of international GB/T17215, GB/T17883, and power industry DL/T14 for meters.
Product specifications
Product series
Accuracy class
Rate voltage
Current specifications
Pulse constant
Three-phase multi-functional energy meter with
rail-type
1.0
AC 3x 220V
External current transformer type 1.5(6)A
3200imp/kwh
The electric meter does not
support customization for the time being.
5(20A)
1600imp/kwh
10(40)A
15(60)A
20(80)A1.0
Technical
| Range of electric energy metering | 0~999999.9KWh |
| Rated voltage | AC3x220/380V |
| Current specifications | 1.5(6)A、5(20)A、10(40)A、15(60)A、20(80)A |
| Working voltage | Normal: 0.9-1.1Un Limit: 0.7~1.2Un |
| Reference frequency | 45〜65Hz |
| Starting current | 0.004lb |
| Consumption | 5VA |
| Pulse output | Pulse width: 80±20ms optocoupler isolated output |
| Digital communication | RS485，Modbus RTUDLT645-2007 |
| Temperature range | -10℃~+55℃ |
| Relative humidity | ≤95% No condensation |
| Overall dimensions(LxWxH) | 76 x 89 x 76(mm) |
